Available in four standard mounting heights, this model is ideal for side-loaders. Like the original compact lifters, it dumps high and deep using a design that minimizes space. New sliding hook feature eliminates the need for a spring plunger and lower stop, allowing the unit to enjoy a wider mounting height range.
D6070

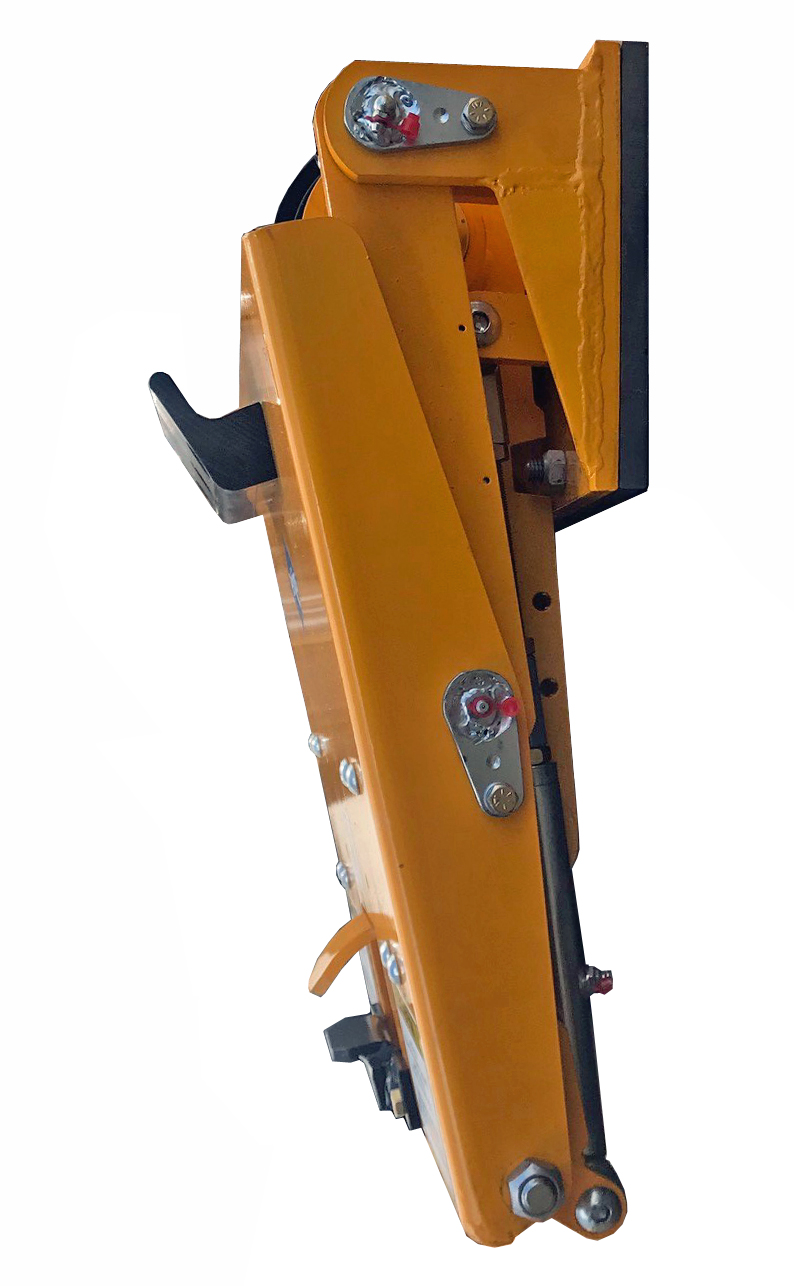

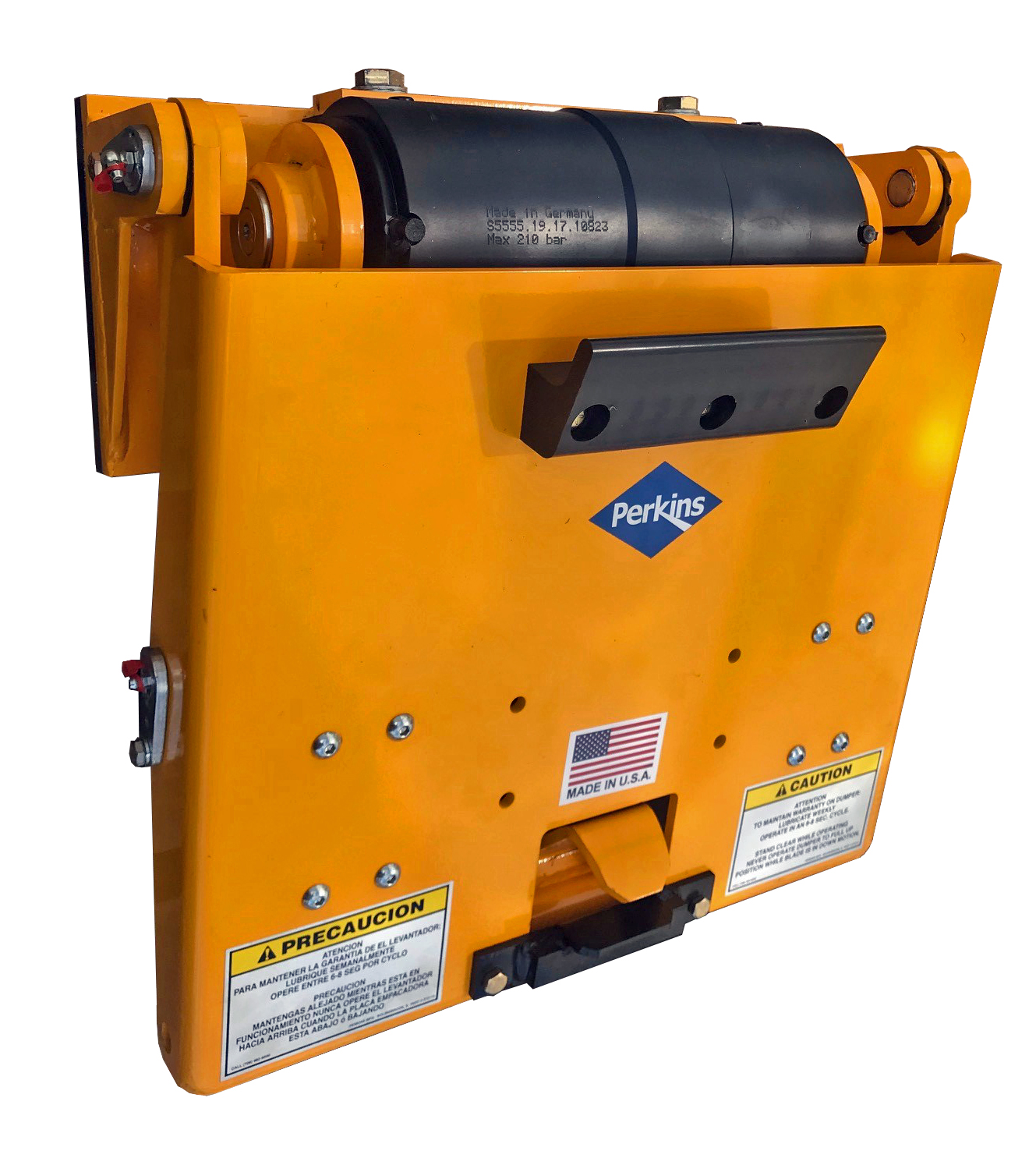

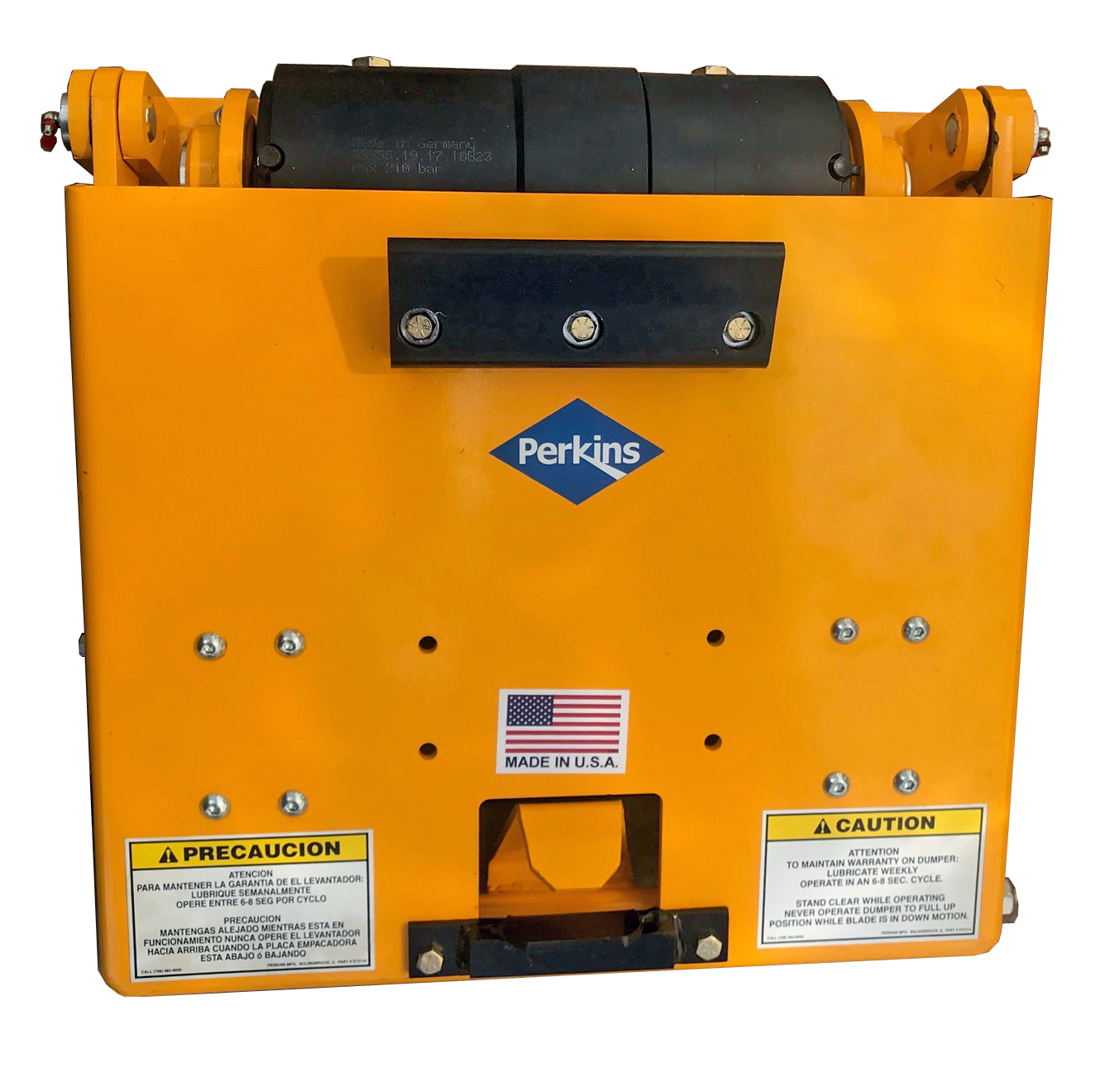

Rotary Short Arm Lifter
D6070
Rotary Short Arm Lifter
Specifications
| Load Type | Front-load, Rear-load without kick-bar, Side-load |
|---|---|
| Description | US 2-Bar; Type B (ANSI Z245.60-2008) |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| width | 21 3/8 inches |
| height | 23 inches |
| Mounting Height | 39 1/2 inches |
Resources
Description
Featured
- Versatile design is perfect for Front-loading Carry Can’s, Side-loaders, or stationary dock-side dumpers.
- Powerful 27k rotary actuator for smooth and dependable lifting action.
- Deep dumping action reduces spillage, helps to distribute the trash evenly into hopper.
- Simple operation and construction
- Reliable service history
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
