The D6220-27k offers the greatest ground clearance and is known for an excellent service record and reliable performance. This tipper-bar compatible model utilizes a simple, compact design with few moving parts.

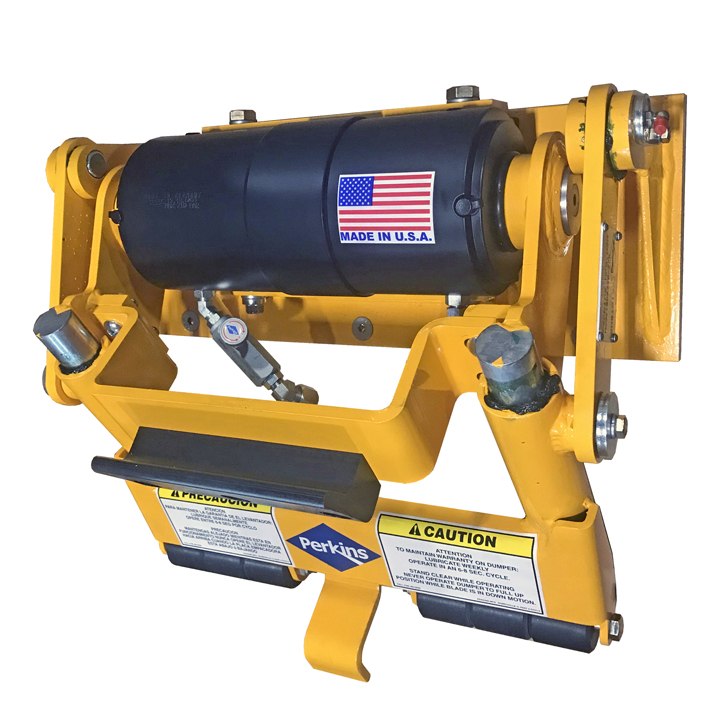

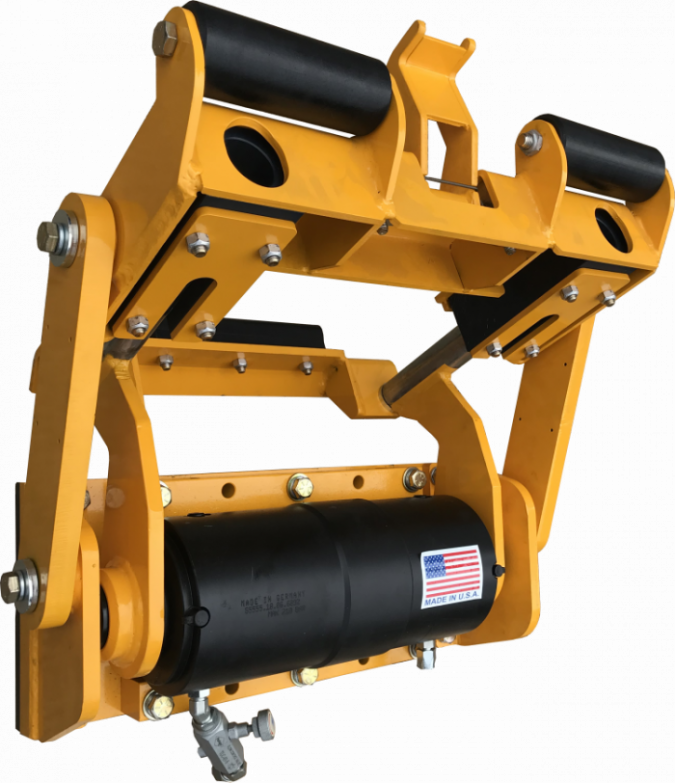

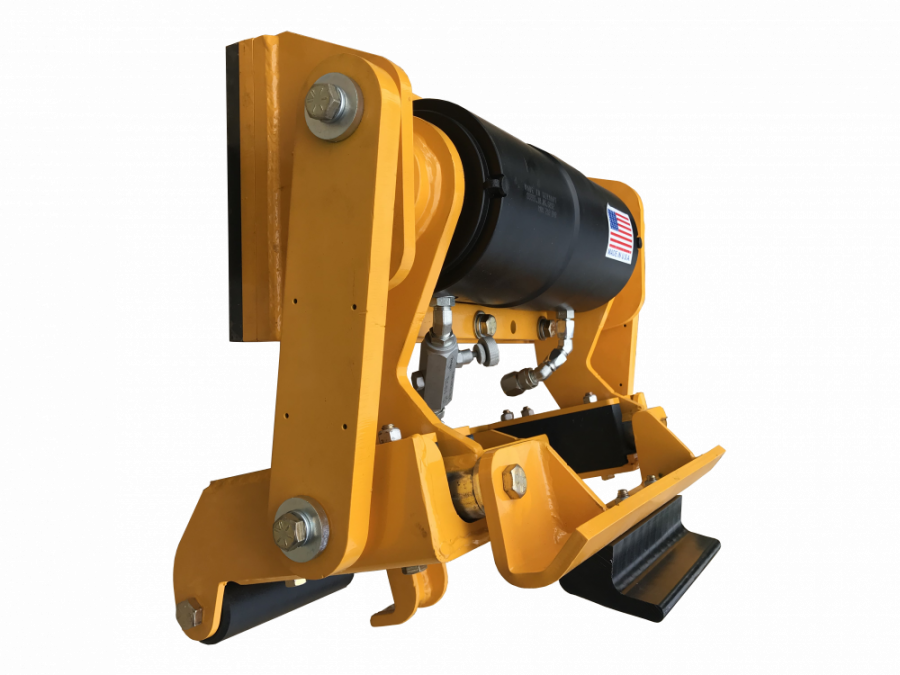

D6220
Tipper-bar Cart Lifter
D6220
Tipper-bar Cart Lifter
Specifications
| Load Type | Rear-load with kick-bar |
|---|---|
| Description | US 2-Bar; Type B (ANSI Z245.60-2008) |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| width | 21 7/8 inch |
| Mounting Height | 39 1/2 – 42 inch |
Resources
Description
Featured
- TuckAway® Cart Lifter has cart-grabbing action that lifts cart on uneven terrain and varying heights.
- This unit can recess under the hopper, and when combined with a sill extension modification kit, your rear-loader can operate both commercial and residential routes.

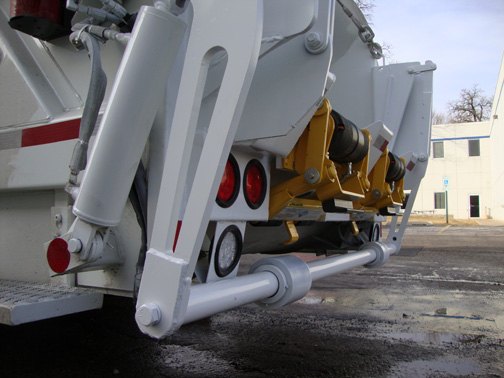

- Fully-compatible with trucks equipped with a tipper-bar / kick bar.
- Powerful 27k rotary actuator for smooth and dependable lifting action.
- Simple operation and construction
- Popular design with 1000’s operational in the field.
- New 3 year limited Warranty
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
