The D6220b embodies an array of improvements featuring plastic linded slides which makes the unit completely grease-less for less maintenance and greener environment. The unit dumps deeper into the hopper for better trash distribution while remaining fully tipper-bar compatible. The powerful 27k actuator is now mounted using removable bars for easy servicing.

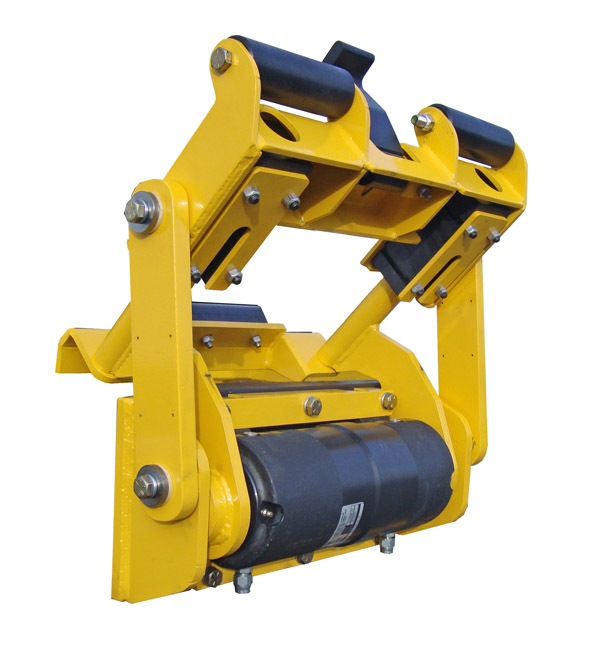

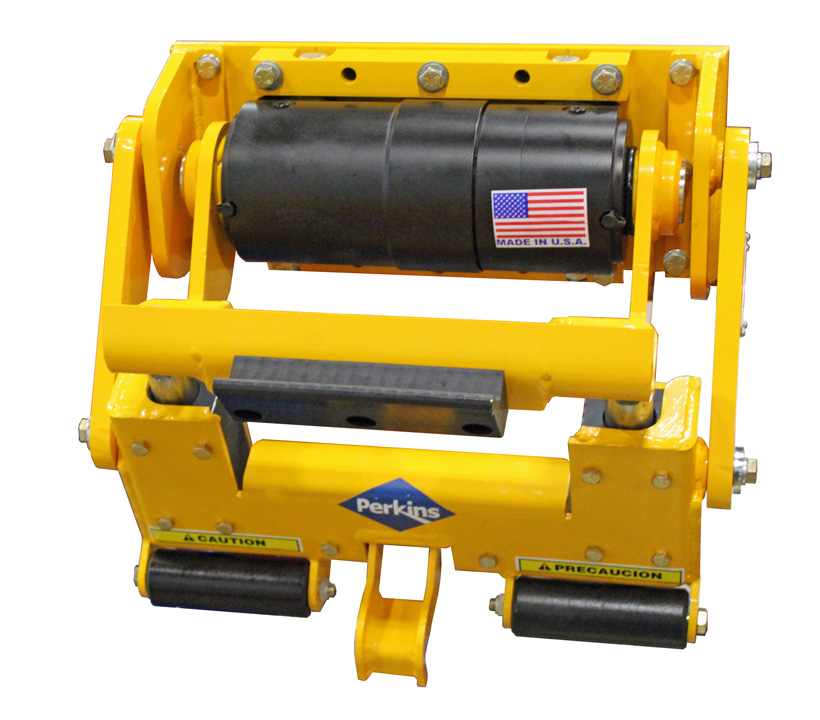

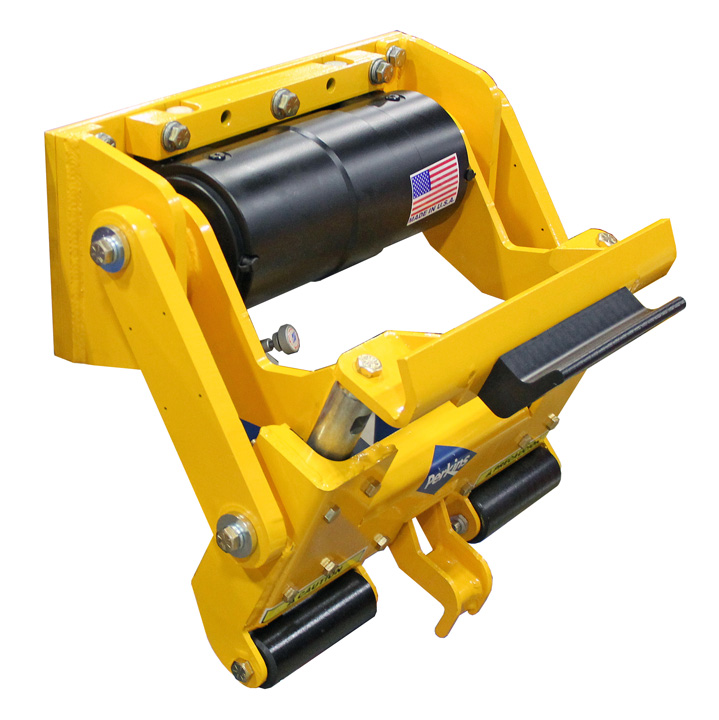

D6220B
TuckAway® Lifter
D6220B
TuckAway® Lifter
Specifications
| Description | US 2-Bar; Type B (ANSI Z245.60-2008) |
|---|---|
| Load Type | Rear-load |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| width | 18 3/4 inches |
| Mounting Height | 36 – 41 inches |
| height | 18 3/4 inches |
Resources
Description
Featured
- TuckAway® Cart Lifter has cart-grabbing action that lifts cart on uneven terrain and varying heights.
- This unit can recess under the hopper, and when combined with a sill extension modification kit, your rearloader can operate both commercial and residential routes.
- Fully-compatible with trucks equipped with a tipper-bar / kick bar.
- Powerful 27k rotary actuator for smooth and dependable lifting action.
- Simple operation and construction
- Popular design with 1000’s operational in the field.
- New 3 year limited Warranty
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
