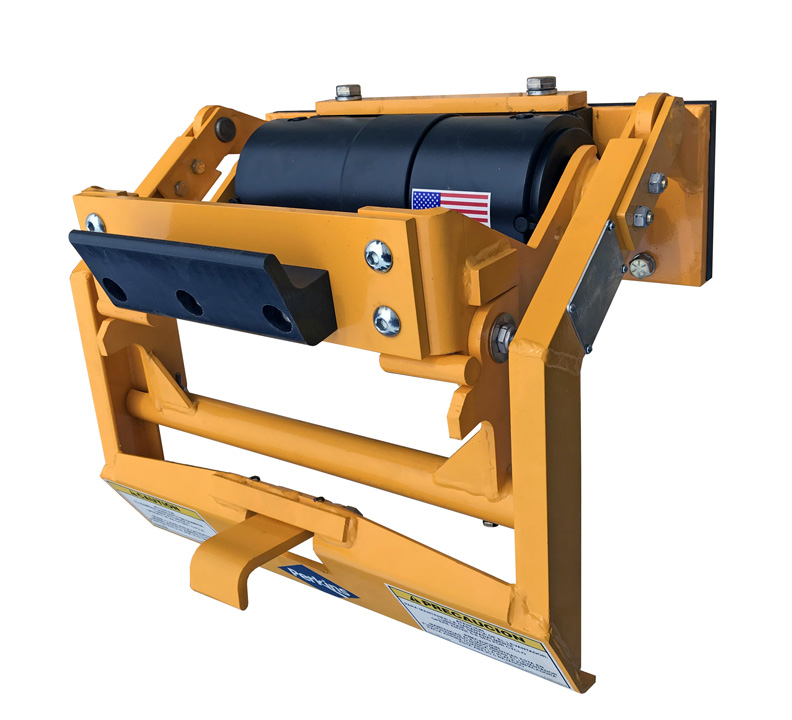

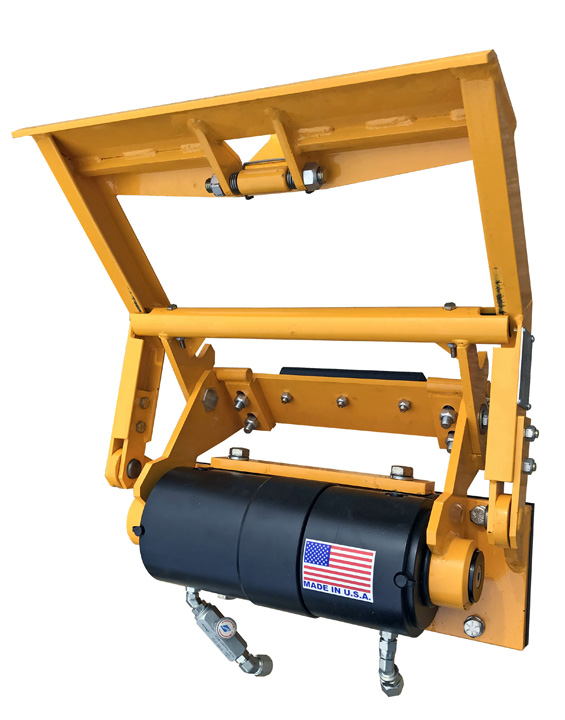

Perkins proves that making an inexpensive rotary cart lifter doesn't mean compromising on quality with these Economy Tipper-Bar TuckAway® models, featuring arc of motion cart grabbing action and the same high performance actuator that graces our other models. Now with a more powerful 27k helical rotary actuator.
D6400
TuckAwayTM Cart Lifter
D6400
TuckAwayTM Cart Lifter
Specifications
| Load Type | Rear-load with kick-bar |
|---|---|
| Description | US 2-Bar; Type B (ANSI Z245.60-2008) |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| width | 20 3/8 inches |
| height | 17 inches |
| Mounting Height | 38 1/2 – 41 inches |
Resources
Description
Featured
- TuckAwayTM Cart Lifter has cart-grabbing action that lifts cart on uneven terrain and varying heights.

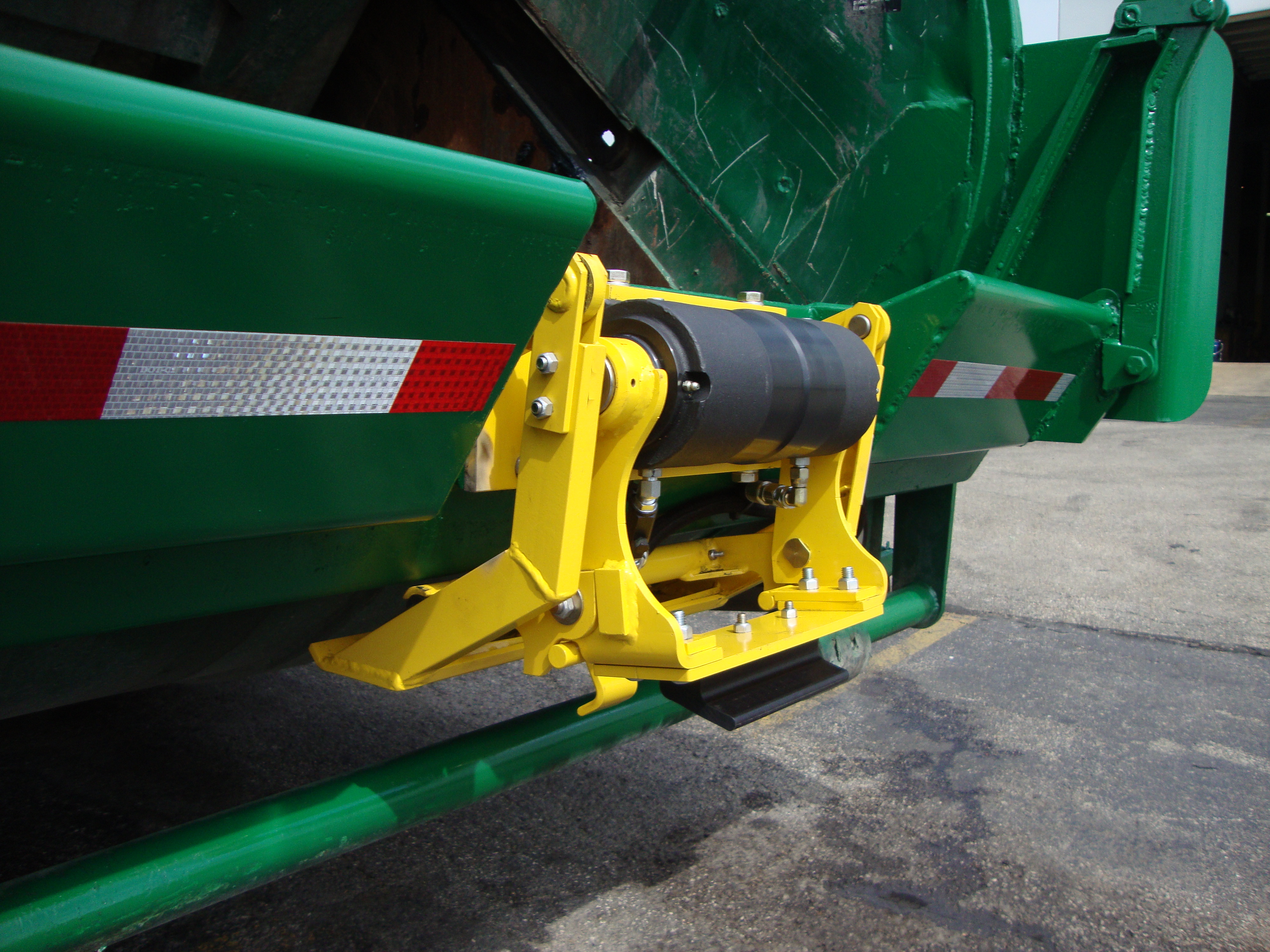

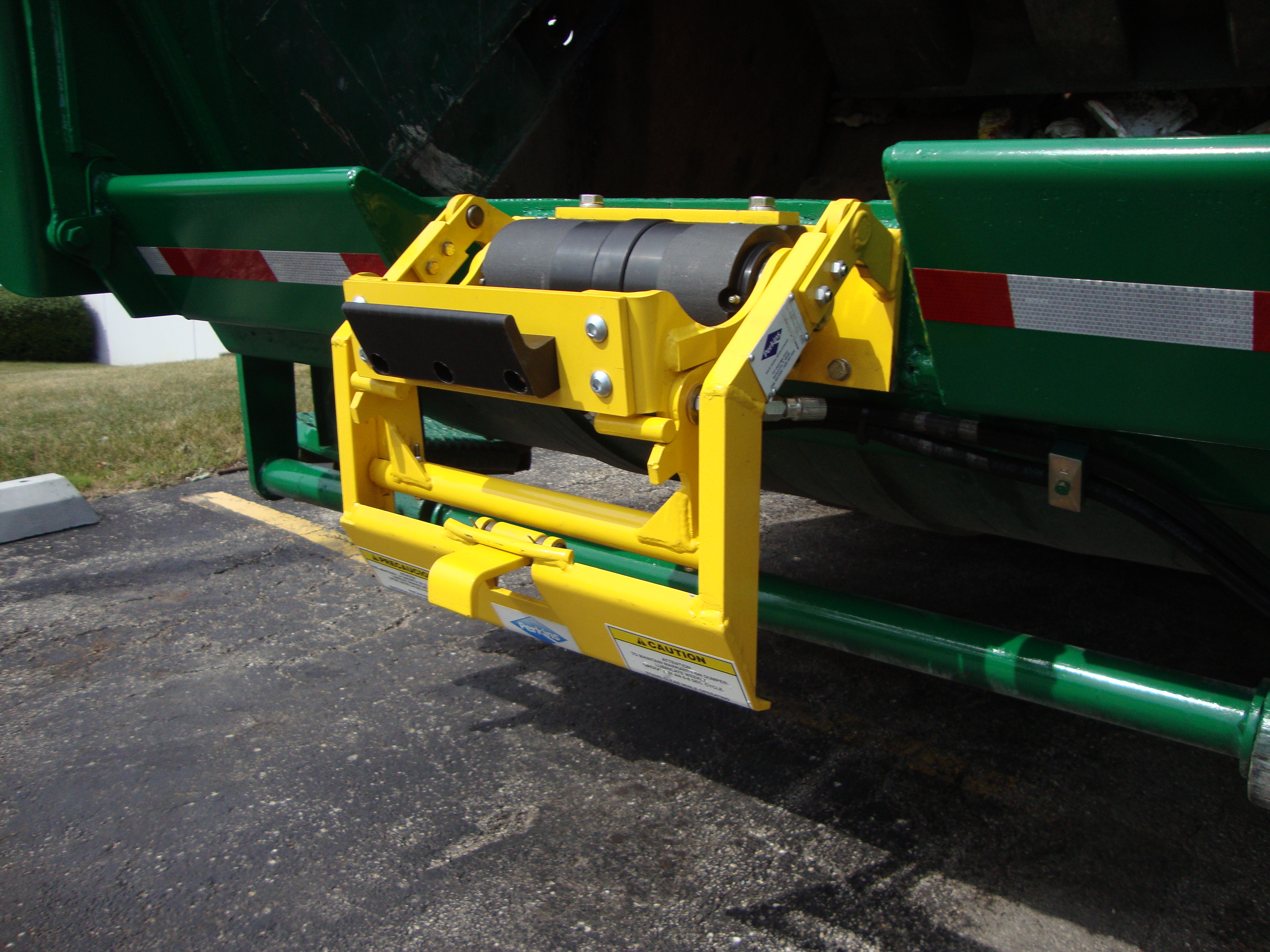

- This unit can recess under the hopper, and when combined with a sill extension modification kit, your rearloader can operate both commercial and residential routes.
- Fully-compatible with trucks equipped with a tipper-bar / kick bar.

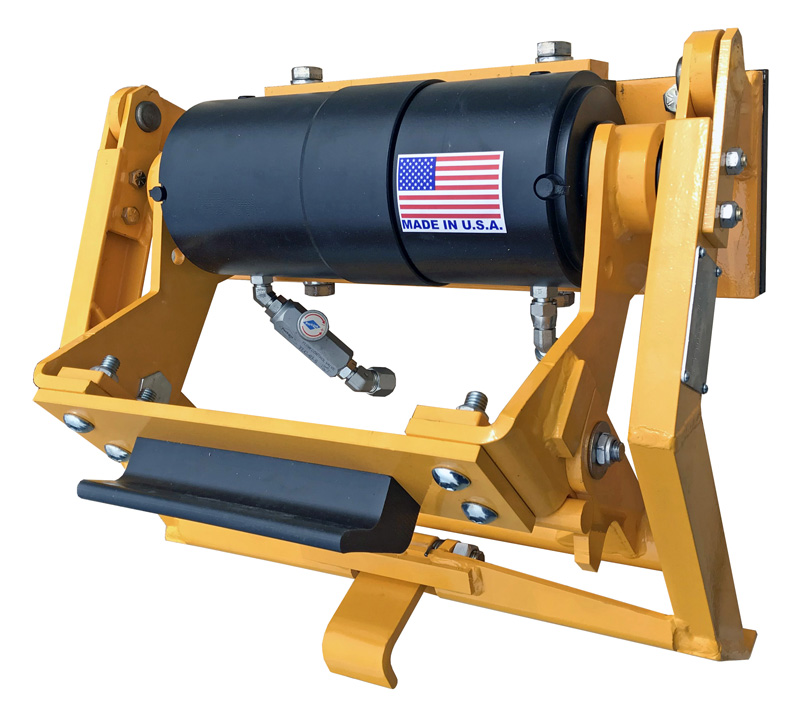

- Powerful 27k rotary actuator for smooth and dependable lifting action.
- The shape of the lifter adapts to your truck.
- Simple operation and construction.
- Greaseless bearings reduce maintenance costs.
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
