Perkins proves that making an inexpensive rotary cart lifter doesn't mean compromising on quality with these Economy Tipper-Bar TuckAway® models, featuring arc of motion cart grabbing action and the same high performance actuator that graces our other models. Now with a more powerful 27k helical rotary actuator.
D6405

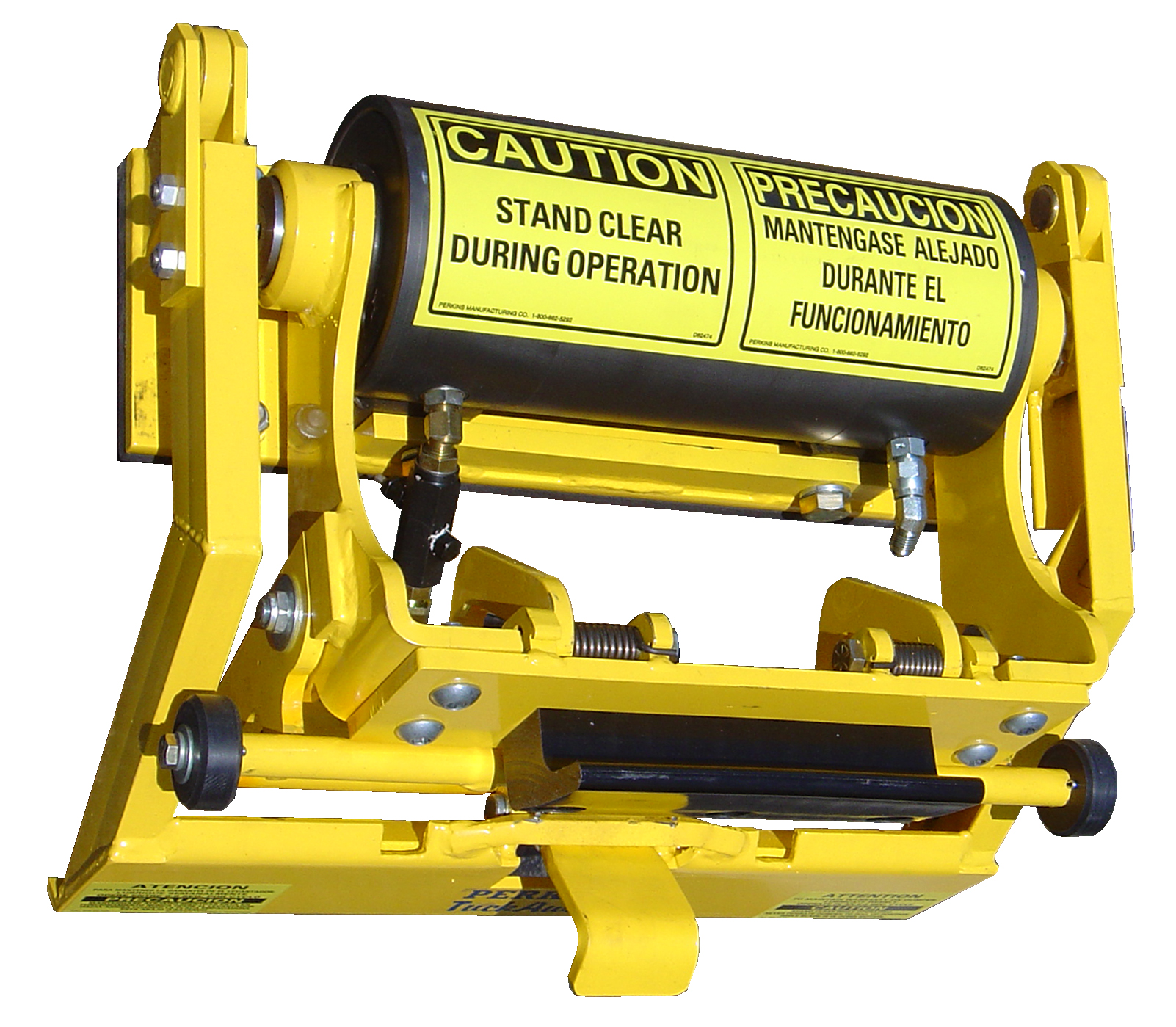

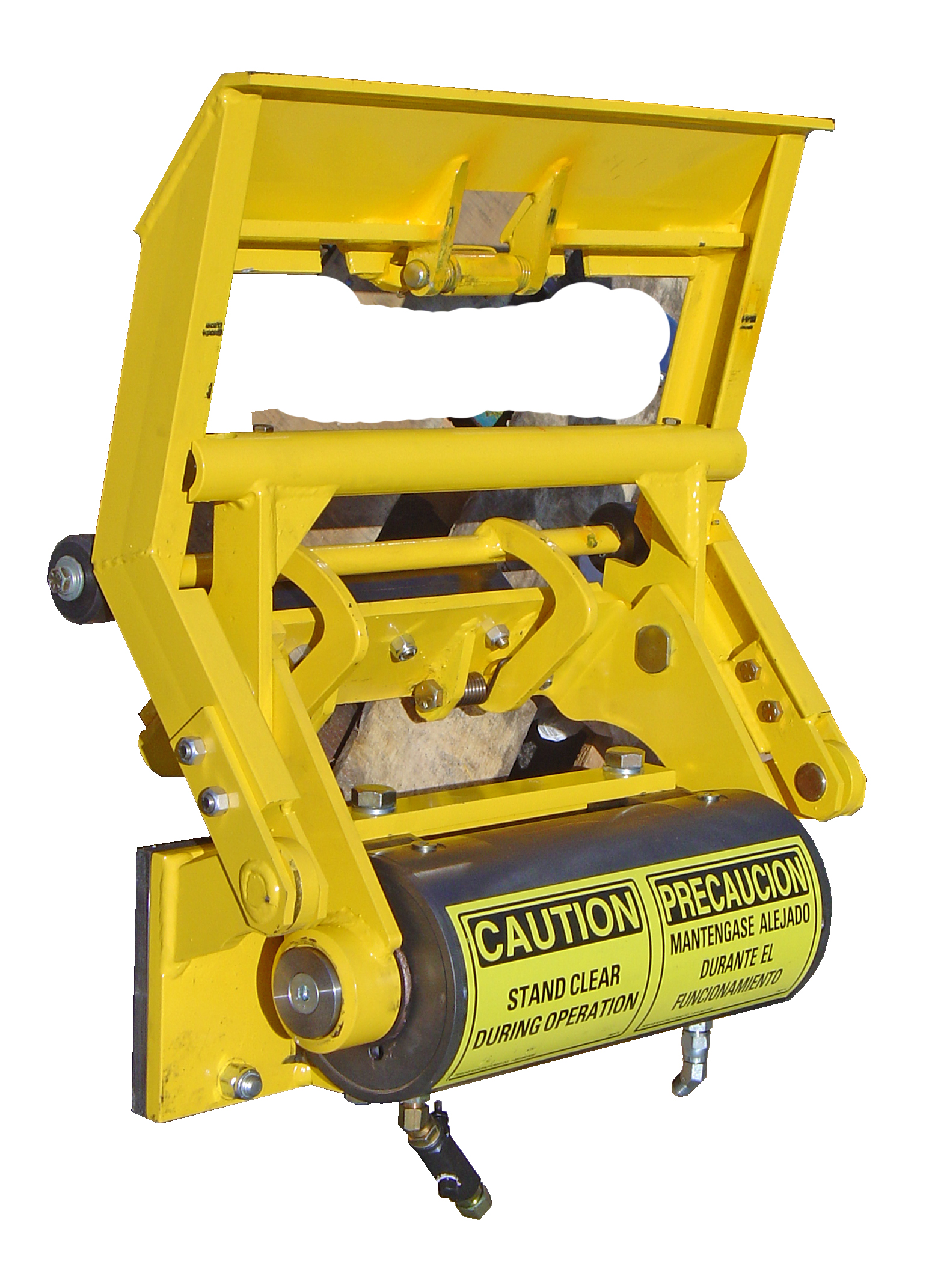

Rotary Cart Lifter
D6405
Rotary Cart Lifter
Specifications
| Load Type | Rear-load with kick-bar, Rear-load without kick-bar |
|---|---|
| Description | US 2-Bar; Type B (ANSI Z245.60-2008) |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| Mounting Height | 39 1/2 – 41 Inches |
Resources
Description
Featured
- TuckAwayTM Cart Lifter has cart-grabbing action that lifts cart on uneven terrain and varying heights.
- This unit can recess under the hopper, and when combined with a sill extension modification kit, your rear-loader can operate both commercial and residential routes.
- Fully-compatible with trucks equipped with a tipper-bar / kick bar.
- Powerful 27k rotary actuator for smooth and dependable lifting action.
- Self-resetting BreakAway feature reduces damage to the actuator in the event of a collision or bottom-out.
- The shape of the lifter adapts to your truck.
- Simple operation and construction.
- Grease-less bearings reduce maintenance costs.
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
