This model utilizes heavy duty components in a compact design with few moving parts. Features simple modular construction that allows replacement of single pieces instead of entire weldments. The swooping pick up action that made the TuckAway® famous allows the operator to engage the cart to the lifter without any back-breaking lifting, regardless of terrain. Now with a more powerful 27k helical rotary actuator with easy to service split-body construction!

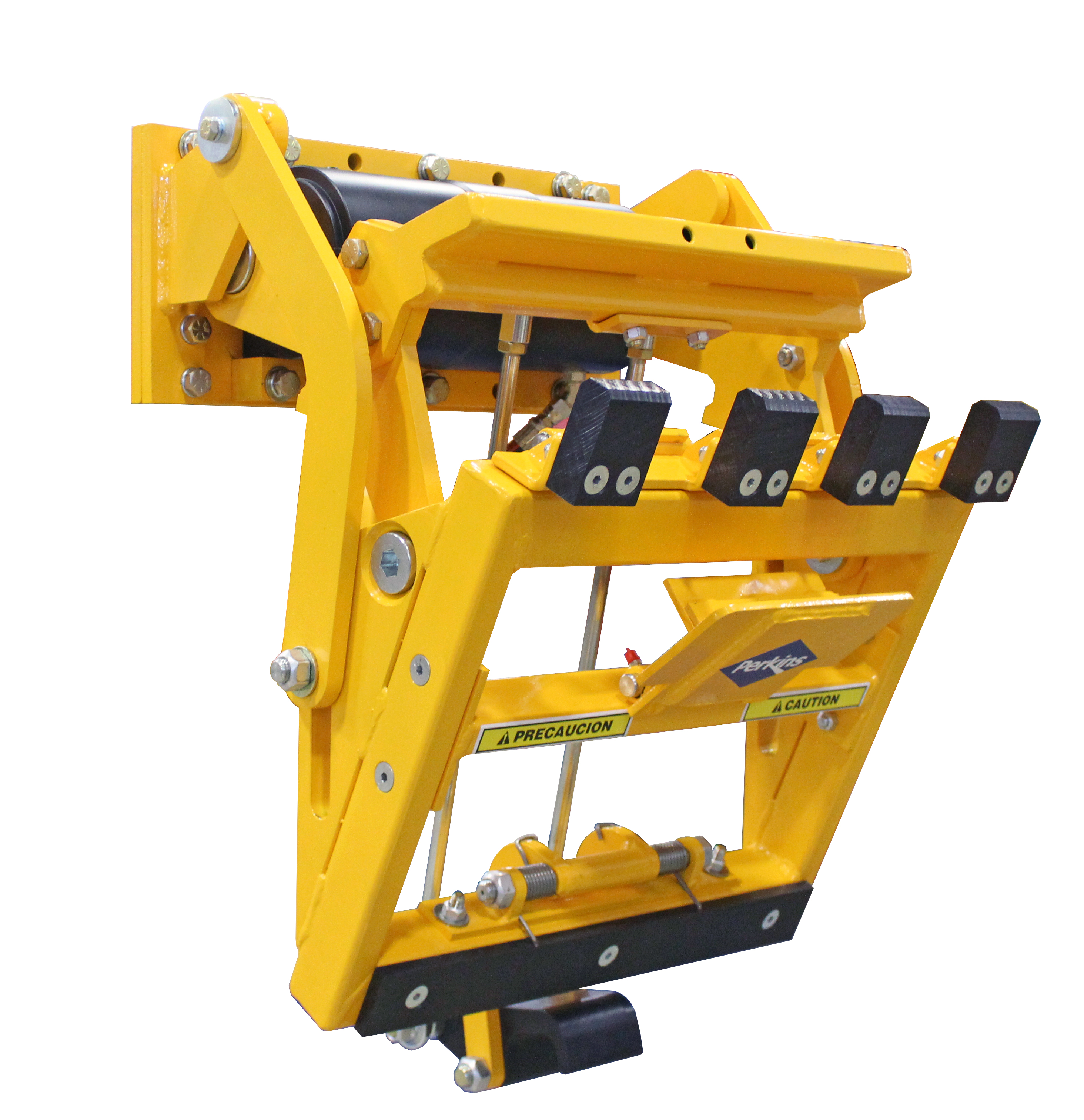

D6745XS
TuckAway® Lifter
D6745XS
TuckAway® Lifter
Specifications
Load Type | Rear-load, Side-load |
---|---|
Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
Mounting Height | 35 3/8" – 46 1/2" |
Description | US 2-Bar/European Type B/C (ANSI Z245.60-2008) |
Resources
Description
Featured
- TuckAway® Lifter Performance
- Compatible with ANSI Type C carts
- 1,850 PSI required for 350 lbs
- 6-8 second cycle time @ 3.5 GPM
- 2 Year limited warranty
- Self-lubricated bearings at pivot points (w/zerks)
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
