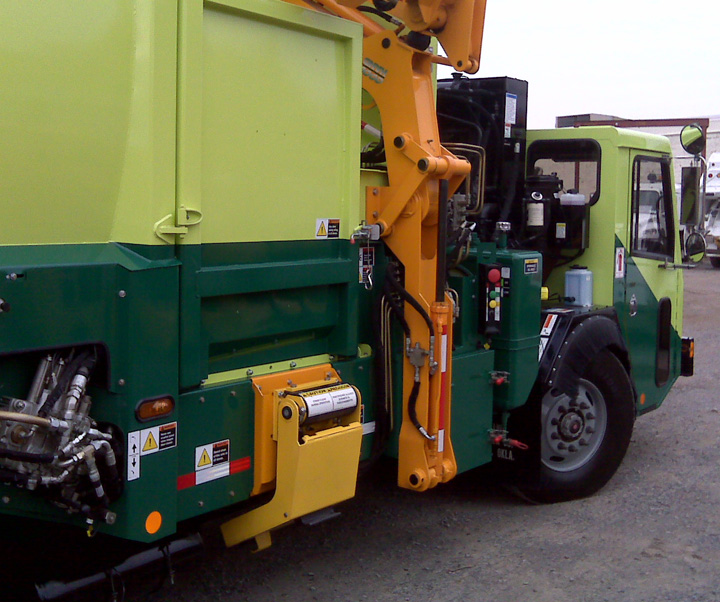

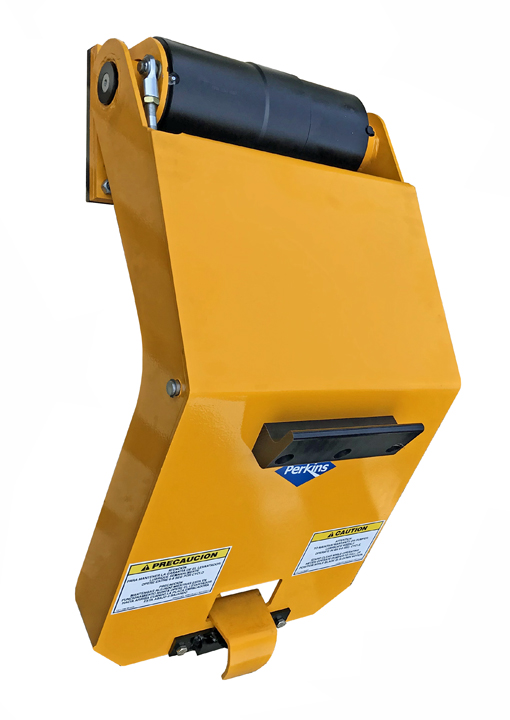

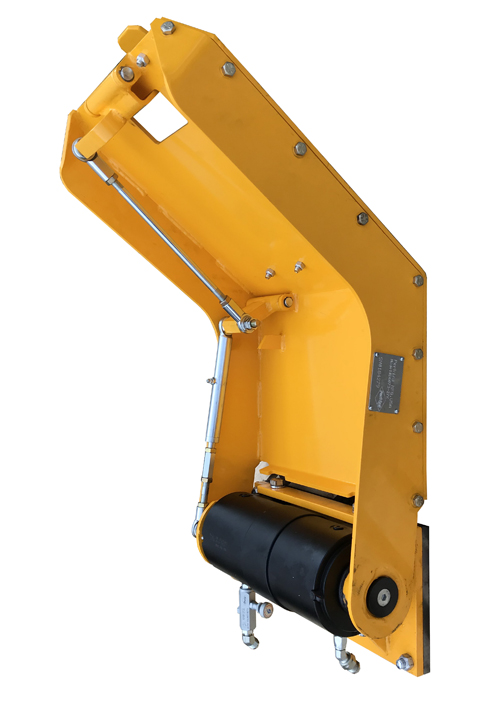

This TuckAway® model was developed specifically for side-loaders, with and extra long arc of motion to dump over a variety of sill heights. The D6073 mounts at a height of 46 1/4" - 50" in order to suit your application. Minimal greasing for less maintenance and various powder coat colors to fit your company or truck design.
D6073
Sideloader Lifters
D6073
Sideloader Lifters
Specifications
| Load Type | Side-load |
|---|---|
| Description | US 2-Bar; Type B (ANSI Z245.60-2008) |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| width | 16 1/2 inches |
| height | 30 1/2 inches |
| Mounting Height | 46 1/4 – 50 Inches |
Resources
Description
Featured
- Mounting height for D6073 is 46 1/4″ – 50″
- Pick-up cart both on and off the curb
- Compact design stores under truck when not in use
- Dumps high and deep for maximum productivity
- Powerful 27k rotary actuator lifts the heaviest loads
- Minimal greasing for less maintenance
- New 3 year limited Warranty
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
