The TuckAway® model was developed specifically for side-loaders, with an extra long arc of motion to dump over a variety of sill heights. The D6073x has a mounting height of 40"-53" inches to suit your application. If your application requires more customization, Perkins' fully staffed engineering department is available for quick and practical custom applications.

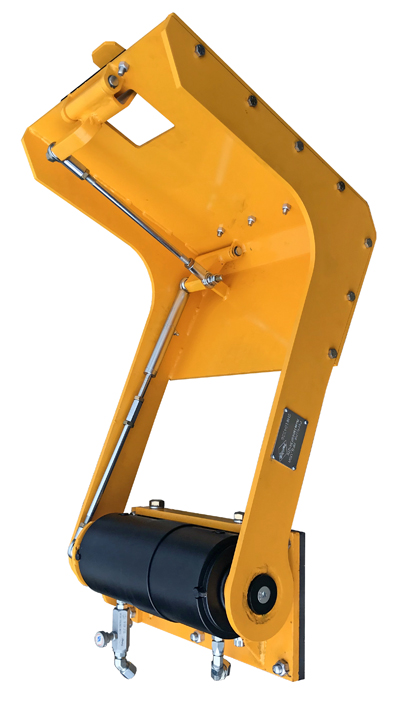

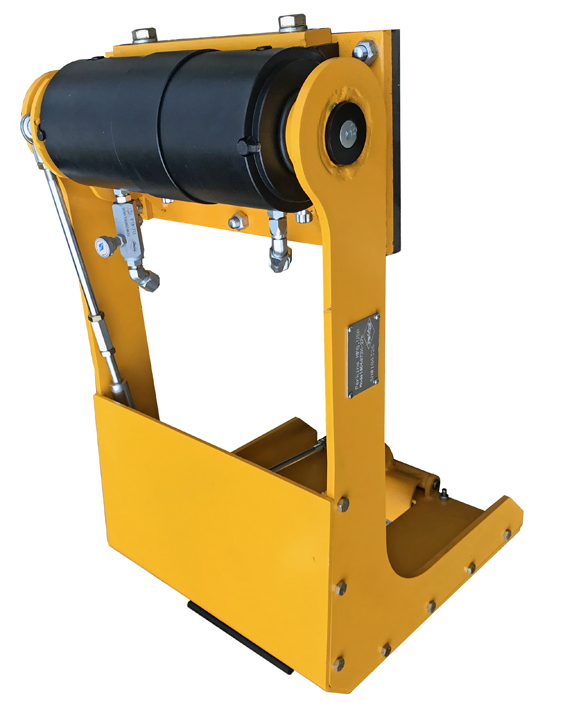

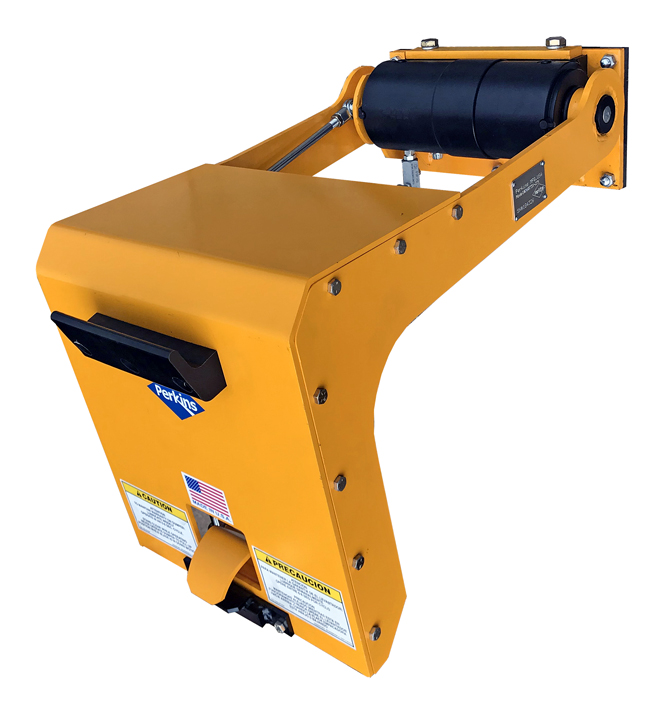

D6073X
Sideloader Lifters
D6073X
Sideloader Lifters
Specifications
| Description | US 2-Bar; Type B (ANSI Z245.60-2008) |
|---|---|
| Load Type | Side-load |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| width | 16 3/4 inches |
| Mounting Height | 40 – 53 inches |
| height | 40-31 3/4 inches |
Resources
Description
Featured
- Mounting height for 40″ – 53″
- Pick-up cart both on and off the curb
- Compact design stores under truck when not in use
- Dumps high and deep for maximum productivity
- Powerful 27k rotary actuator lifts the heaviest loads
- Minimal greasing for less maintenance
- New 3 year limited Warranty
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
