Capable of lifting an ample variety of plastic carts and barrels, up to 400lbs. With longer arms, a more powerful 27k helical rotary actuator, and customability, the D6120 series suits side-loader, rear-loader, and industrial applications.

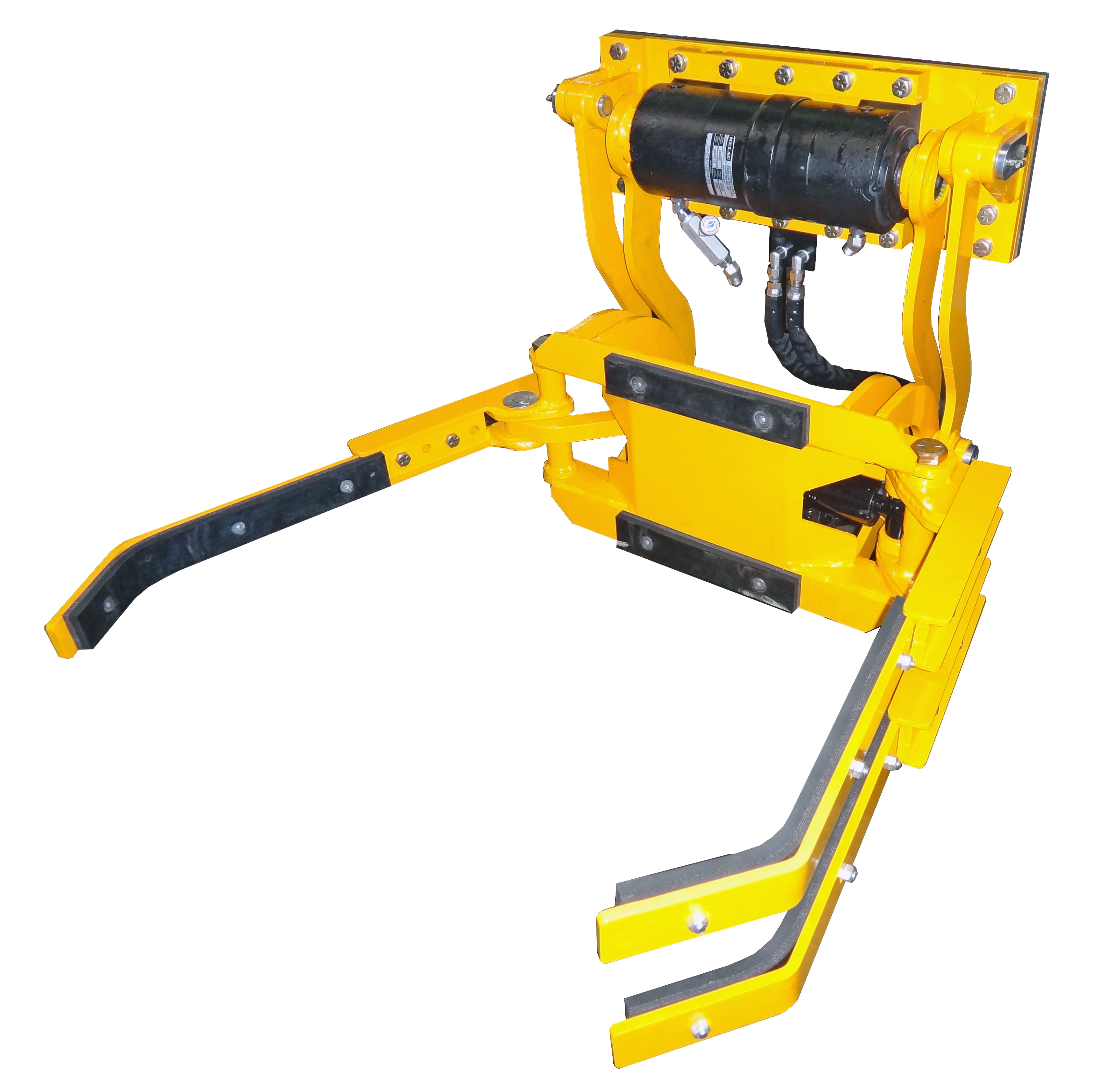

D6120
Lifter
D6120
Lifter
Specifications
| Load Type | Rear-load, Side-load |
|---|---|
| Description | Automated; Type G (ANSI Z254.60-2008) |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| width | 22.5 in Mount, 38.5 in Overall |
| height | 22 in Overall, 8 in Mount |
| Mounting Height | 37, 40, 47, 51, 57 inch |
Resources
Description
Featured
- All new, 27k Helical Actuator
- Arms fit wide range of cart sizes and styles, up to 96 gallon in capacity, and barrels up to 400lbs
- 6-8 Second cycle time at 3 GPM
- Less maintenance time
- Available customization for specific applications
- Pressures starting at 1,650 PSI for 400lb load

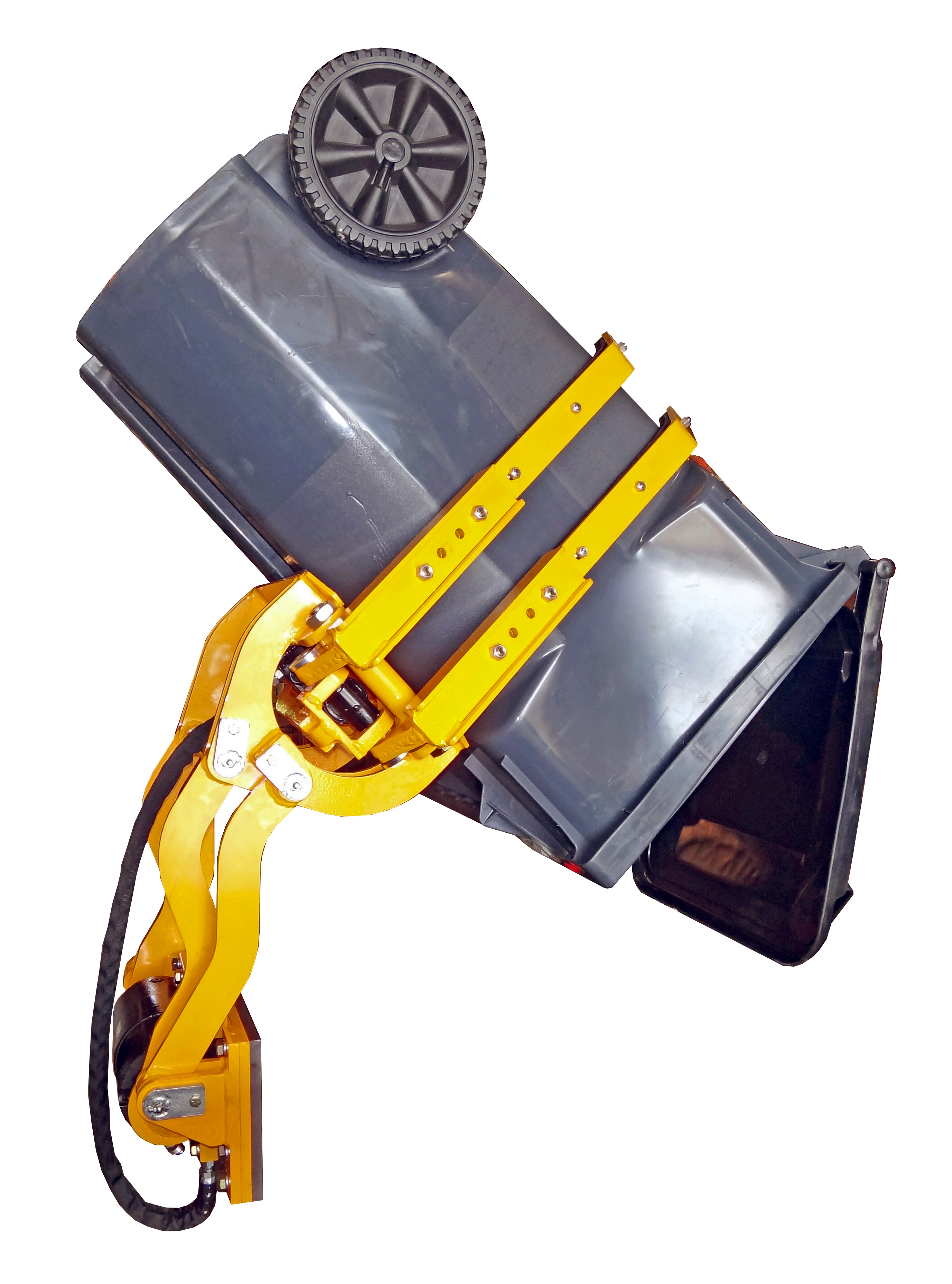

- 45 degree dump angle
- Multiple powder-coated finish options
- Easy mounting plate installation
- Adjustable flow control valve
- 2 Year Limited Warranty
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
