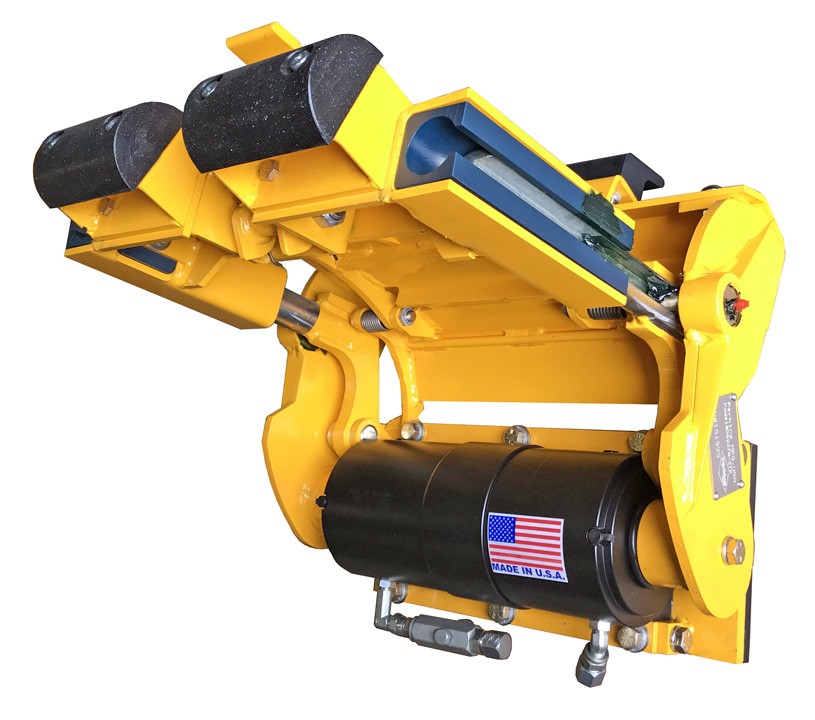

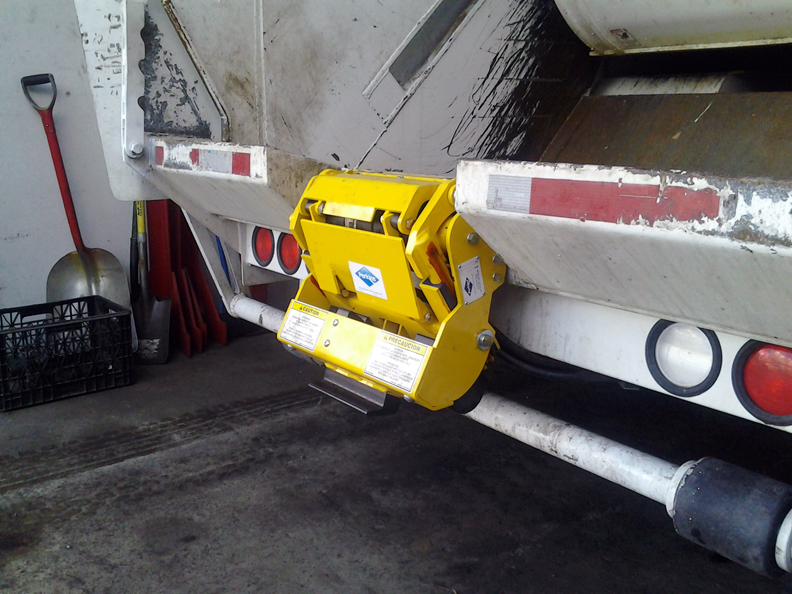

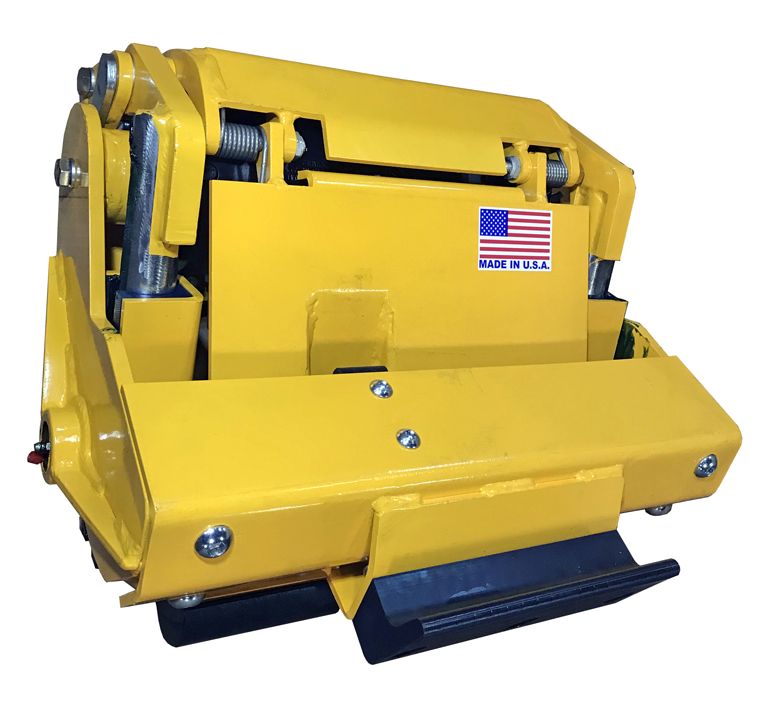

The Universal low mount TuckAway® features swooping movement that allows for low sill height mounting. When mounted to rear-loaders, it can clear tipper bars, dump deeply into the hopper, and store under the hopper sill when not in use. Powered by our new 27k helical rotary actuator.
D6237a
TuckAway® Lifter
D6237a
TuckAway® Lifter
Specifications
| Load Type | Rear-load with kick-bar |
|---|---|
| Description | US 2-Bar; Type B (ANSI Z245.60-2008) |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| Mounting Height | 30 – 40 Inches |
Resources
Description
Featured
- Unique “Back-Saving” action grabs carts on various terrains and heights
- Spring loaded lower latch is easy on cart surfaces
- ISO 9001 manufacturer
- 1,550 PSI required for 400lb load
- 6-8 second cycle time @ 3 GPM
- Easy bolt-on/off mounting plate included
- Adjustable flow control valve
- New 3 year limited warranty
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
