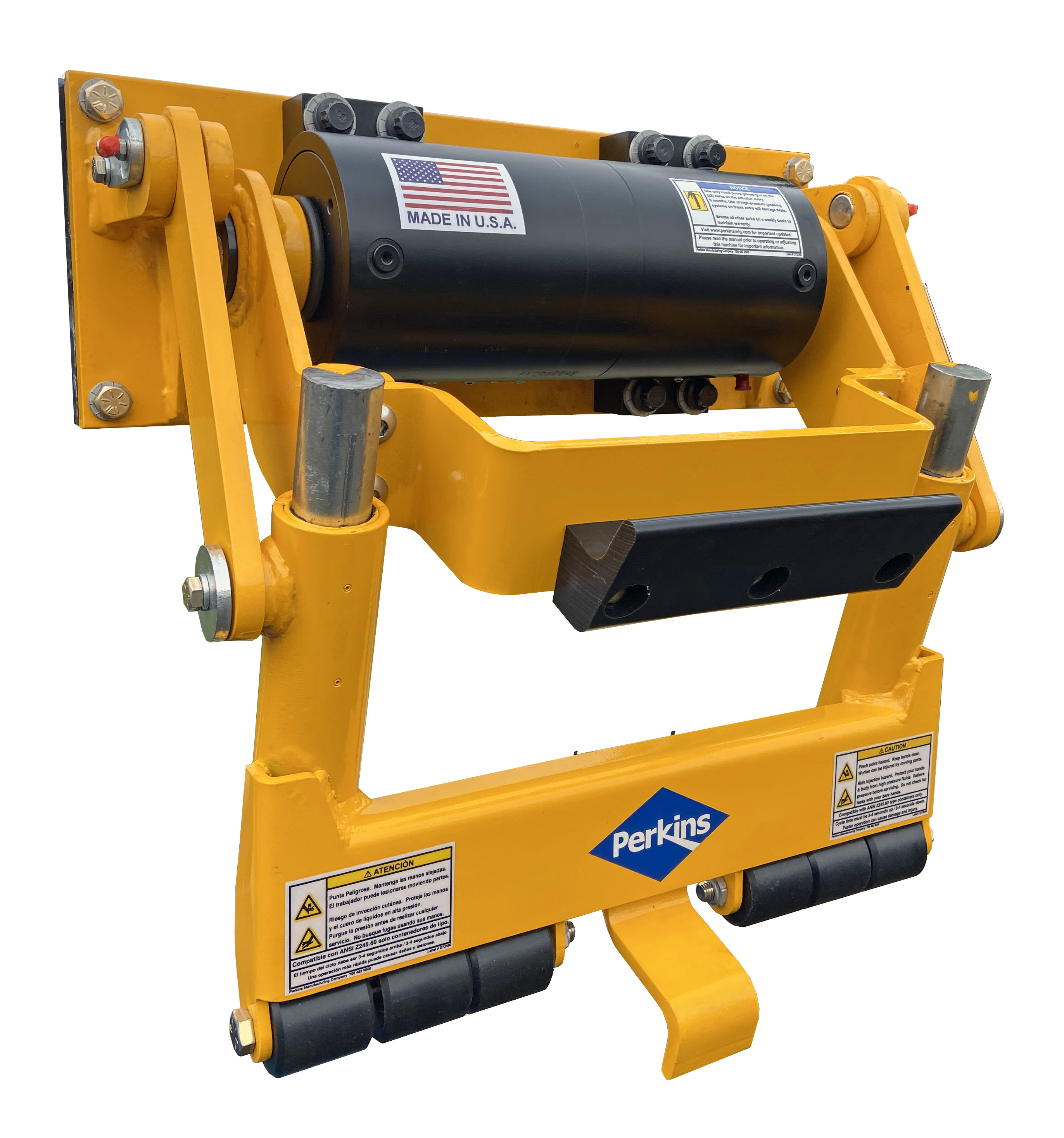

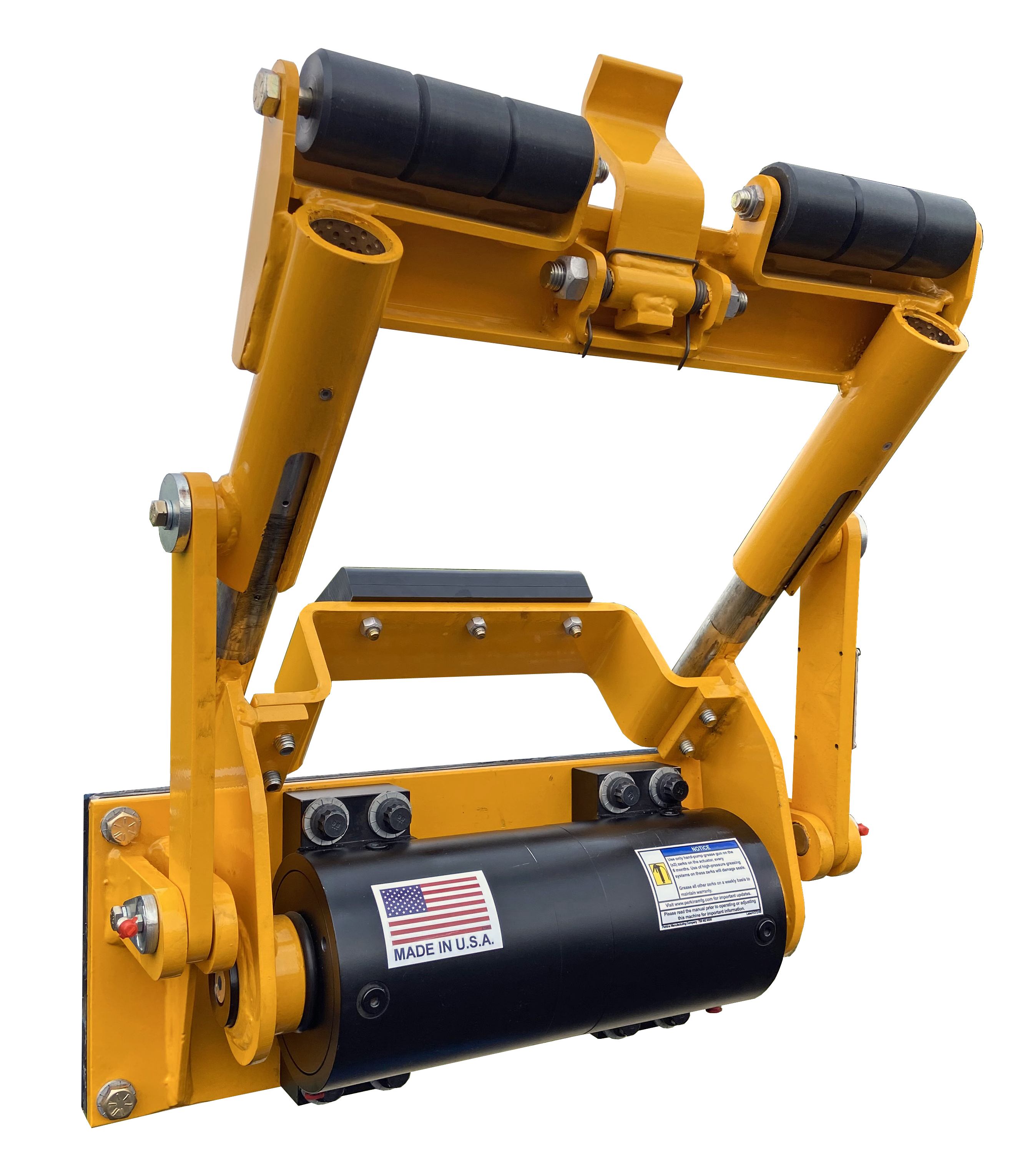

The WD6220-27k is fully tipper-bar compatible. The Tipper-Bar Lifter features composite slides which makes the unit completely grease-less for less maintenance and a greener for the environment.
WD6220

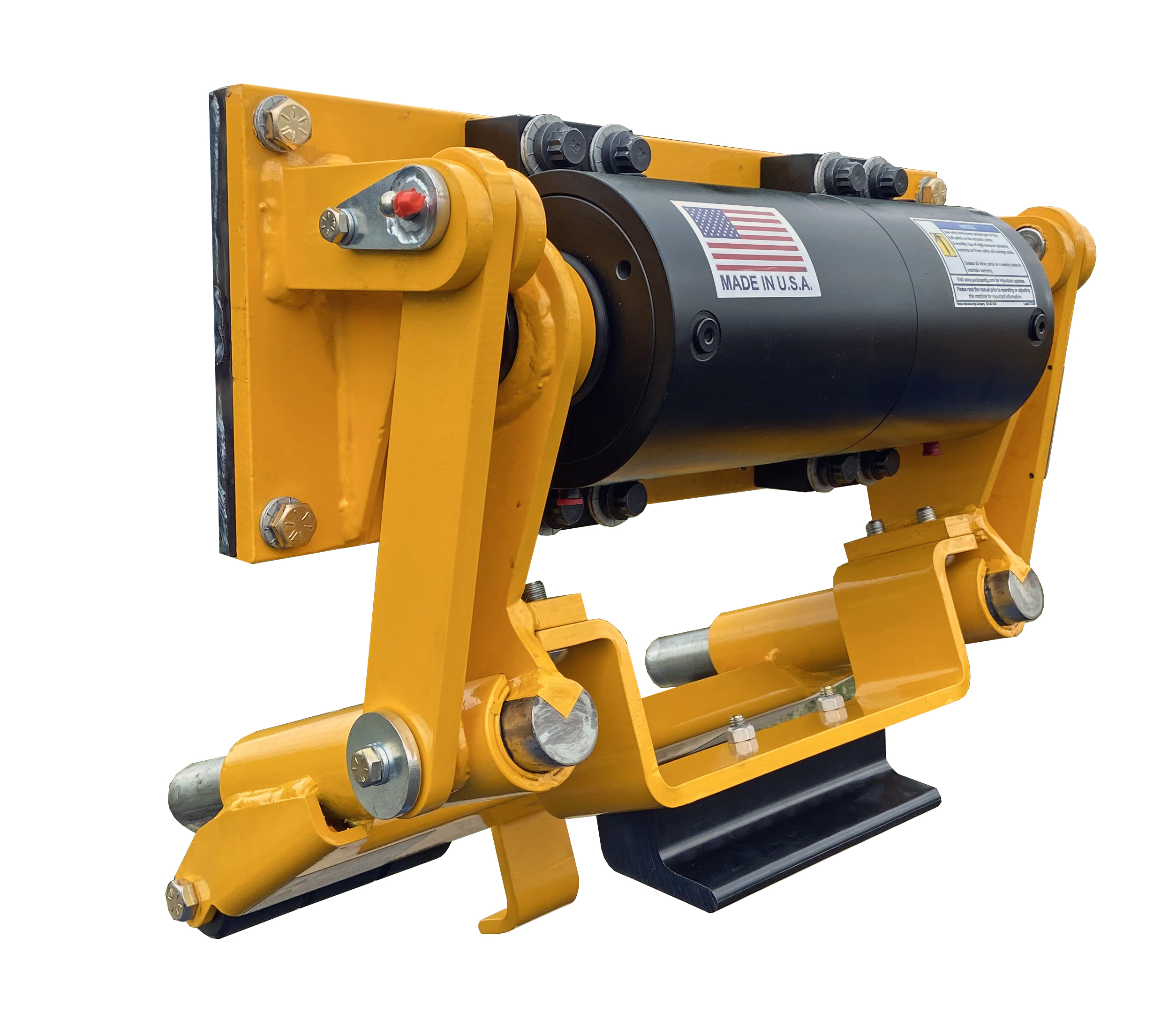

TuckAway® Tipper-Bar Lifter
WD6220
TuckAway® Tipper-Bar Lifter
Specifications
| Load Type | Rear-load with kick-bar |
|---|---|
| Description | US 2-Bar; Type B (ANSI Z245.60-2008) |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| width | 22 inches |
| height | 34 inches |
| Mounting Height | 39 1/2 – 42 inch |
Resources
Description
Featured
- New powerful wide foot 27k Helical Actuator
- Small profile fits well with tipper-bar equipped trucks
- Unique “Back-Saving” action grabs carts on various terrains and heights
- Spring loaded lower latch is easy on cart surfaces
- Fully compatible to ANSI Type B carts
- 1,550 PSI required for 400lb load
- 6-8 second cycle time @ 4 GPM
- Multiple powder-coated finish options
- Self-lubricated composite bearings at pivot points
- 3 Year Limited Warranty
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
