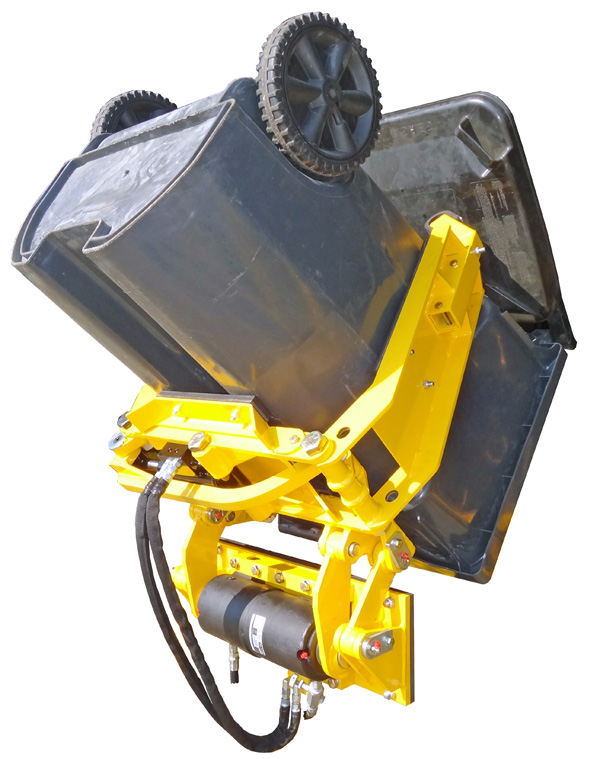

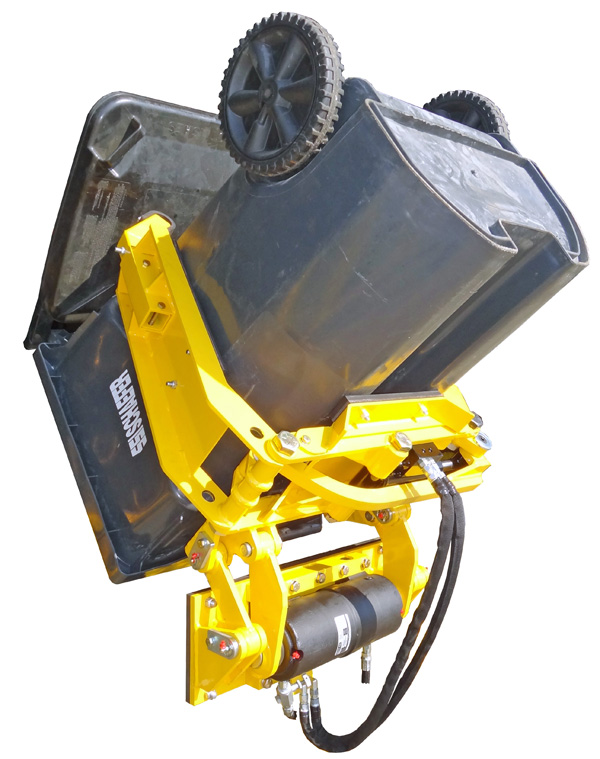

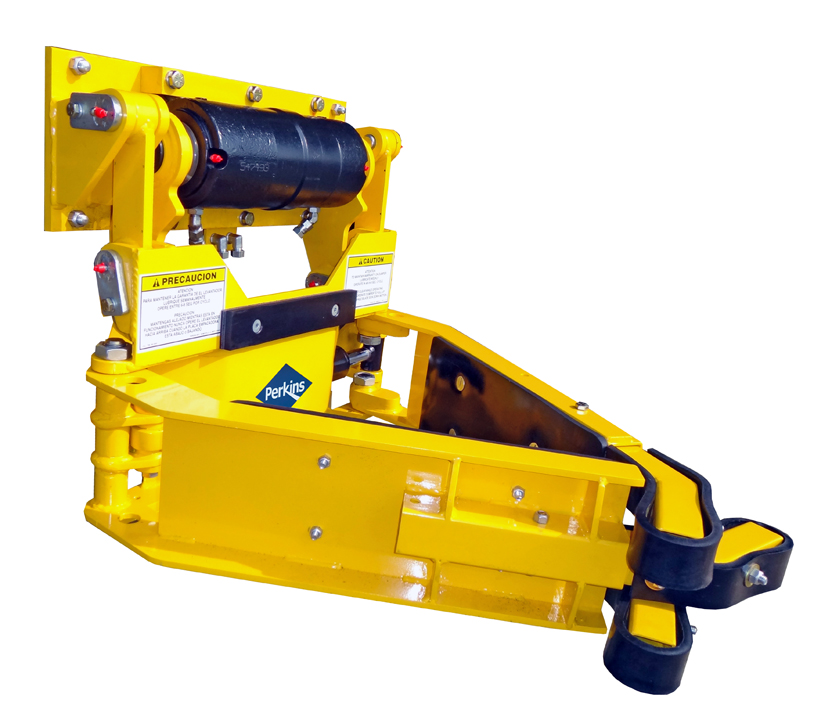

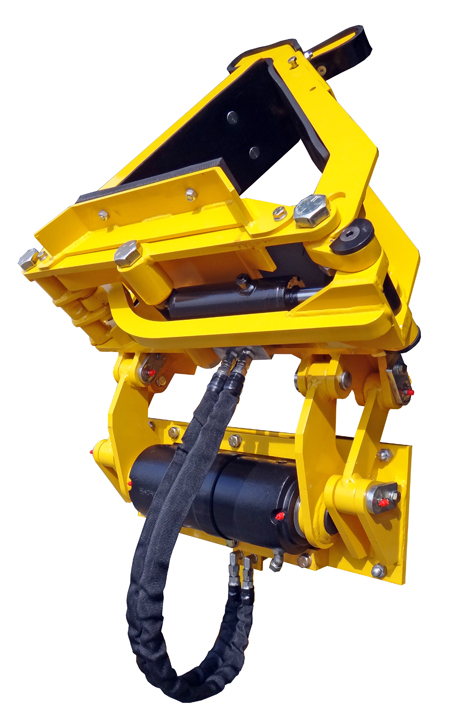

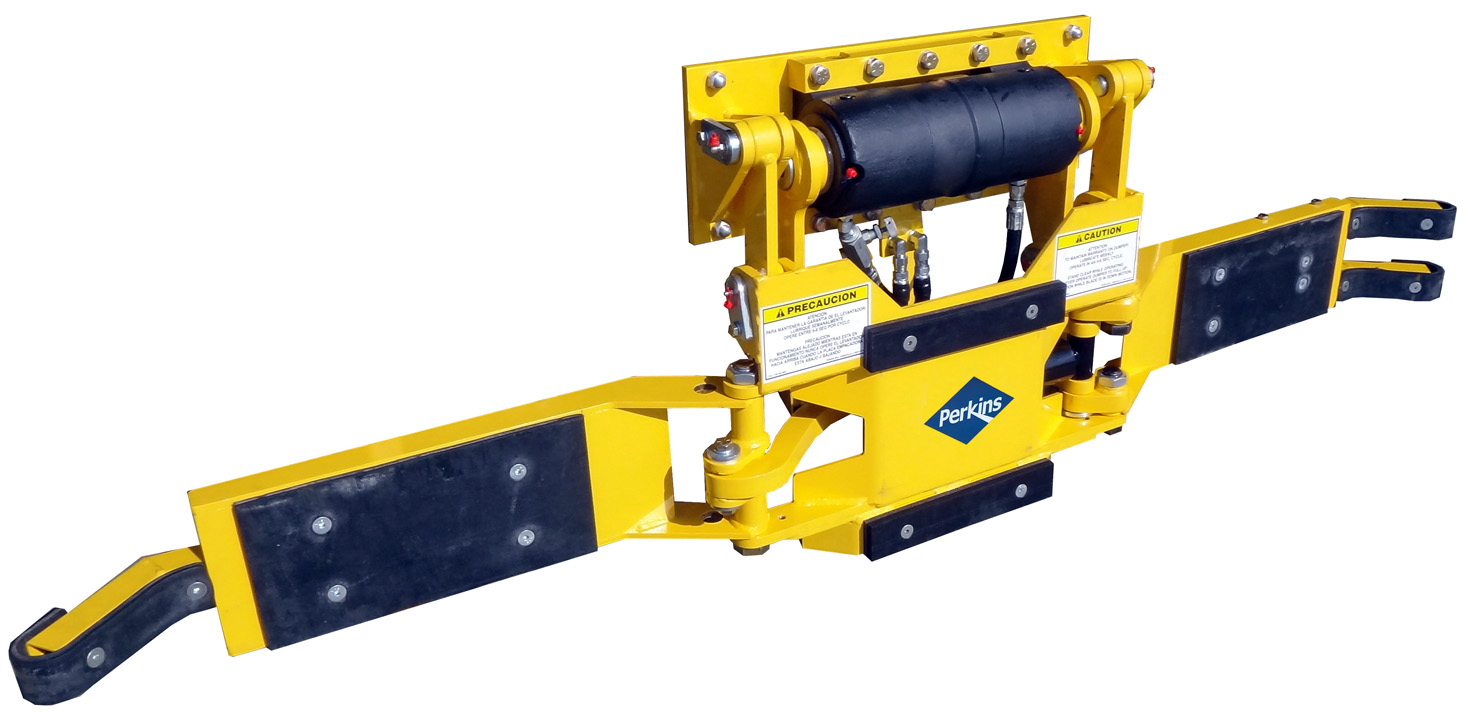

This barrel-grabber style cart lifter features hydraulically folding arms that get out of the way for hand loading items. When in use, the arms are capable of fitting a large assortment of styles and sizes of plastic carts. Now with a more powerful 27k helical rotary actuator.
D6099OA
Grabber Lifter
D6099OA
Grabber Lifter
Specifications
| Load Type | Rear-load, Side-load |
|---|---|
| Description | Automated; Type G (ANSI Z245.60-2008) |
| Operation | Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi |
| width | 81 inches |
| height | 21 inches |
| Mounting Height | 36 1/2 inches |
Resources
Description
Featured
- Folding grabber arm for maximum access to the hopper
- Available in 4 standard arm lengths to fit your application better
- Minimal greasing for less maintenance
- ISO 9001 manufacturer
- Compatible to wide assortment of carts and barrels, up to 96 gallon in capacity
- Mutliple powder-coat finish color options
- Easy bolt-on/off mounting plate included
- New 2 year limited warranty
*Please Note: It is the purchaser’s responsibility to determine product suitability for a given application. Perkins Manufacturing cannot be held liable for errors or omissions. Call Perkins Manufacturing (708) 482-9500 for assistance in choosing a cart lifter.
